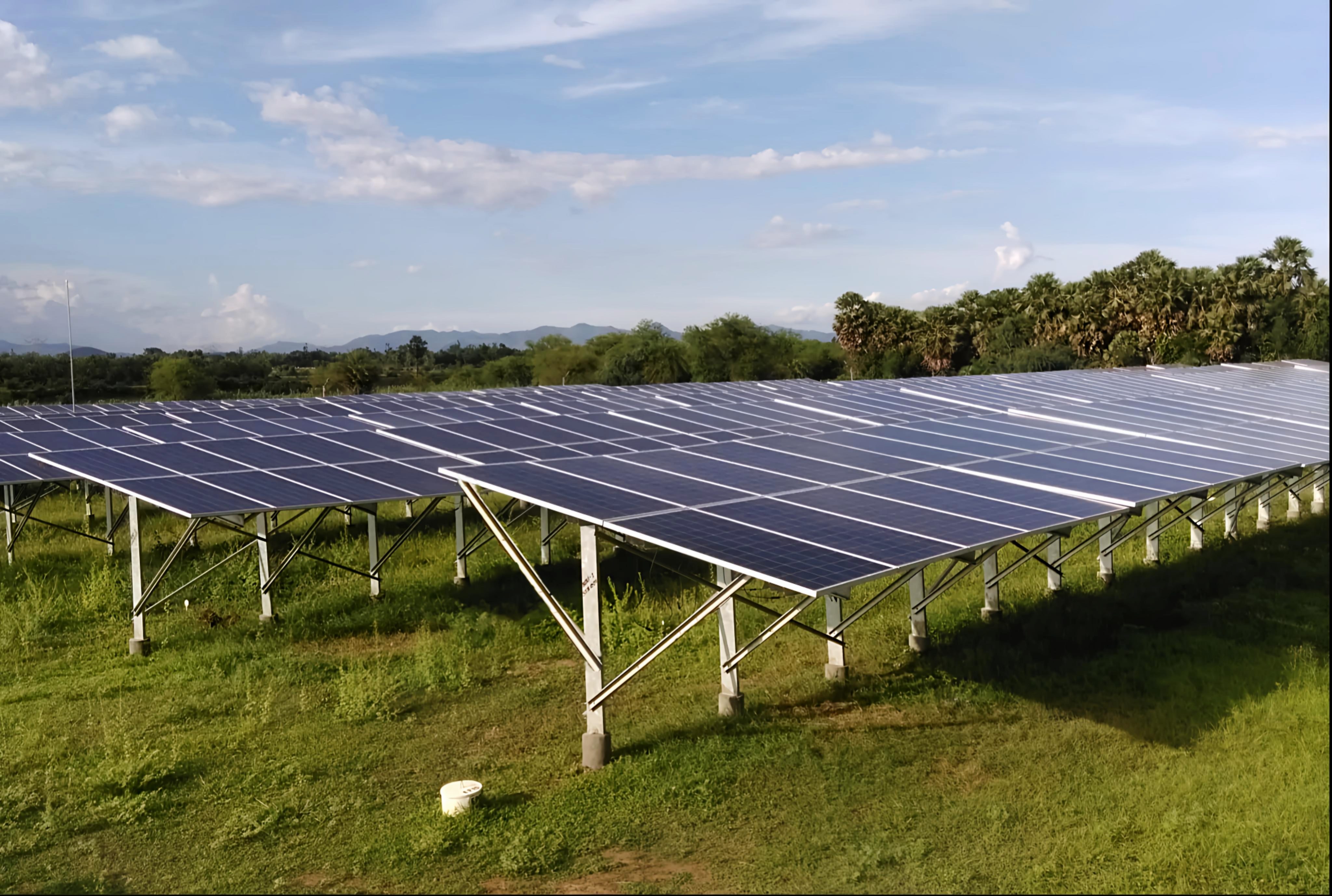

Ground Mounted Solar Structures
Heavy-Duty Structures Engineered for Utility, Industrial & Large-Scale Solar Projects
From structural engineering to manufacturing and dispatch, Suncore delivers customized ground mounted solar structures designed for strength, installation efficiency and long-term performance. Each mounting structure can be engineered according to module configuration, project location, wind conditions, terrain, required tilt angle, foundation design and structural loading requirements.
Heavy-Duty Engineering
Optimized structural sections for large-scale solar installations.
Wind-Load Designed
Project-specific structural engineering for site wind conditions.
High-Capacity Manufacturing
In-house roll forming and fabrication capability for bulk project requirements.
A. Fixed Tilt Structure
Standard fixed-angle mounting system designed according to project requirements.
B. Heavy-Duty Ground Mounted Structure
Designed for large commercial, industrial and utility-scale projects.
C. Customized Tilt Structure
Tilt angle developed according to project layout and engineering requirements.
D. Multi-Row Structure
Optimized arrangement for large solar plants with repetitive module-table configurations.
E. Customized Ground Mounting System
Developed according to terrain, module arrangement, foundation and structural requirements.
Product Specification
| Product | Ground Mounted Solar Module Mounting Structure |
| Application | Utility / Industrial / Commercial Solar Projects |
| Finish Options | Hot-Dip Galvanized / Project Specific |
| Column + Rafter | C / Z / Customized Structural Sections |
| Purlins | C / Z / Hat Section as per design |
| Module Clamps | Aluminium AL6063 |
| Accessories | SS304 / Project Specific |
| Module Orientation | Portrait / Landscape as per design |
| Structural Analysis | Available |
| Foundation | As per approved civil/structural design |
- ✓ Heavy-duty structural design
- ✓ Suitable for MW-scale projects
- ✓ Project-specific engineering
- ✓ Customized tilt and configuration
- ✓ Optimized structural sections
- ✓ High-quality steel construction
- ✓ Hot-dip galvanized finish options
- ✓ Aluminium AL6063 module clamps
- ✓ SS304 accessories where specified
- ✓ Nut-and-bolt-based assembly
- ✓ Precision-punched components
- ✓ Reduced on-site fabrication
- ✓ Efficient transportation and packing
- ✓ Technical installation support
- ✓ PAN-India supply capability
Utility-Scale Solar Plants
Captive Solar Projects
Commercial Solar Plants
Industrial Solar Projects
Open Land Solar Projects
Wind Load Design
Structures can be engineered for project-specific wind conditions based on site location, module configuration, mounting geometry and approved structural analysis.
Wind-Load Design Available
Up to 180 km/h*
*Subject to approved project configuration, structural analysis, foundation design and site conditions.
Site-Specific Analysis
Wind conditions evaluated based on project location, terrain and module configuration.
STAAD.Pro Structural Analysis
Structural design evaluated using STAAD.Pro before manufacturing release.
Optimized Section Design
Member configuration developed for structural efficiency under approved loading.

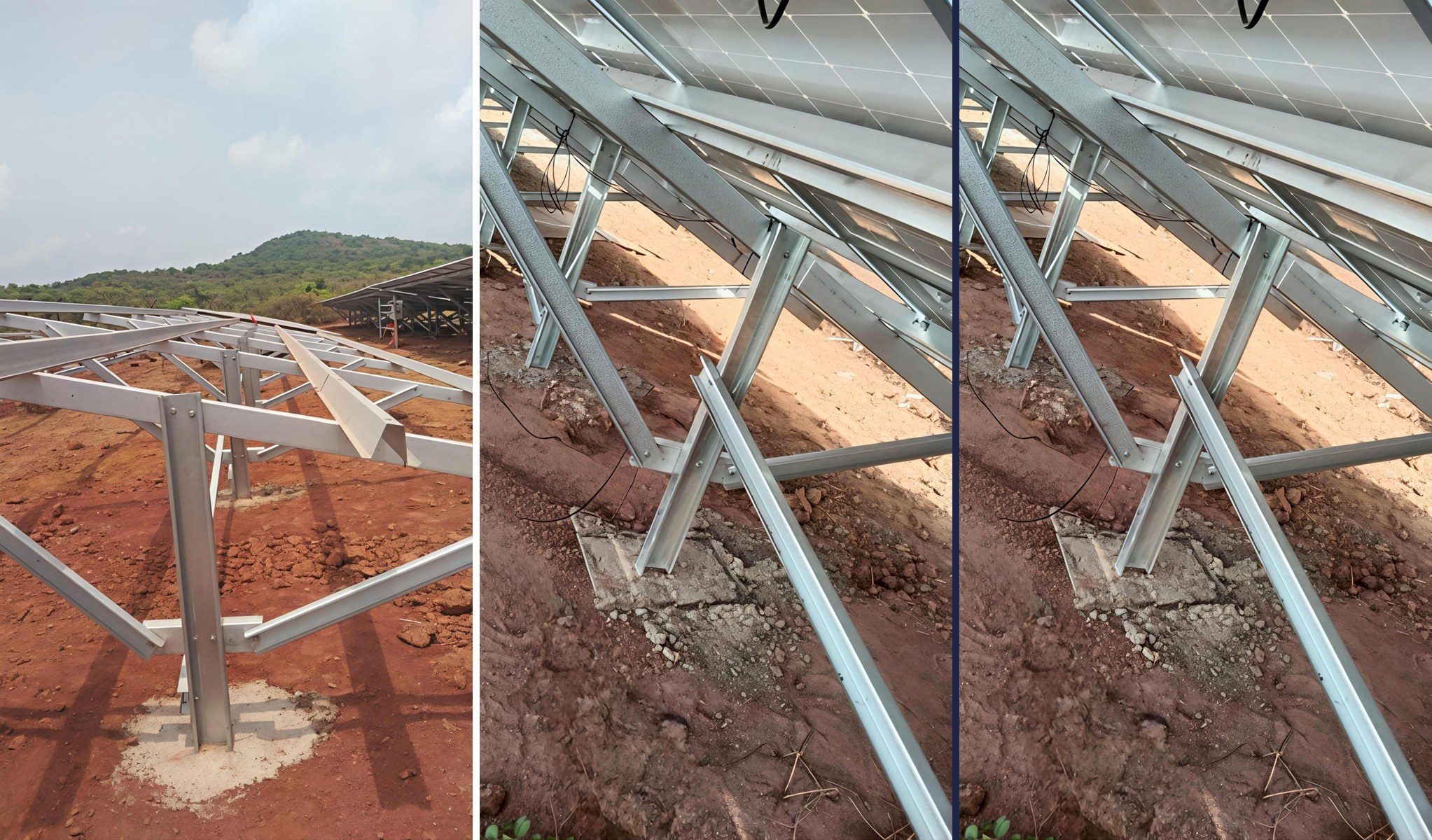

Designed Around Your Foundation & Site Conditions
Structural interfaces can be customized to coordinate with the approved civil foundation design. Possible project interfaces may include:
RCC Foundation
Pedestal Foundation
Pile-Based Configurations
Project-Specific Connection
Fully Customizable Interface
Material & Finish Options
Hot-Dip Galvanized Steel
Recommended where enhanced corrosion resistance and long-term outdoor performance are required.
Structural Steel
Engineering-selected grades and sections according to project structural requirements.
Aluminium Module Clamps
AL6063 aluminium clamps for secure solar module mounting.
SS304 Accessories
Corrosion-resistant accessories where specified in the approved configuration.
Ready for MW-Scale Supply
Suncore's manufacturing infrastructure is designed to support high-volume solar structure requirements with systematic production planning, quality control and project-wise dispatch.
*Capacity is subject to structure design, specifications, raw-material availability and production planning. Publish only after final management approval.
Why EPC Companies Choose Suncore
Engineering Support
Customized structure design per project.
Optimized BOQ
Efficient sections for material optimization.
High-Volume Manufacturing
In-house production for bulk quantities.
Precision Components
Pre-punched parts for accurate assembly.
Project-Wise Packing
Systematic bundling for faster site execution.
Reduced Site Fabrication
Nut-and-bolt assembly reduces welding needs.
Fast Installation
Pre-engineered components minimize site time.
Project Scheduling Support
Coordinated delivery per project timeline.
PAN-India Dispatch
Structures supplied across India.
Technical Coordination
Engineering team support during execution.

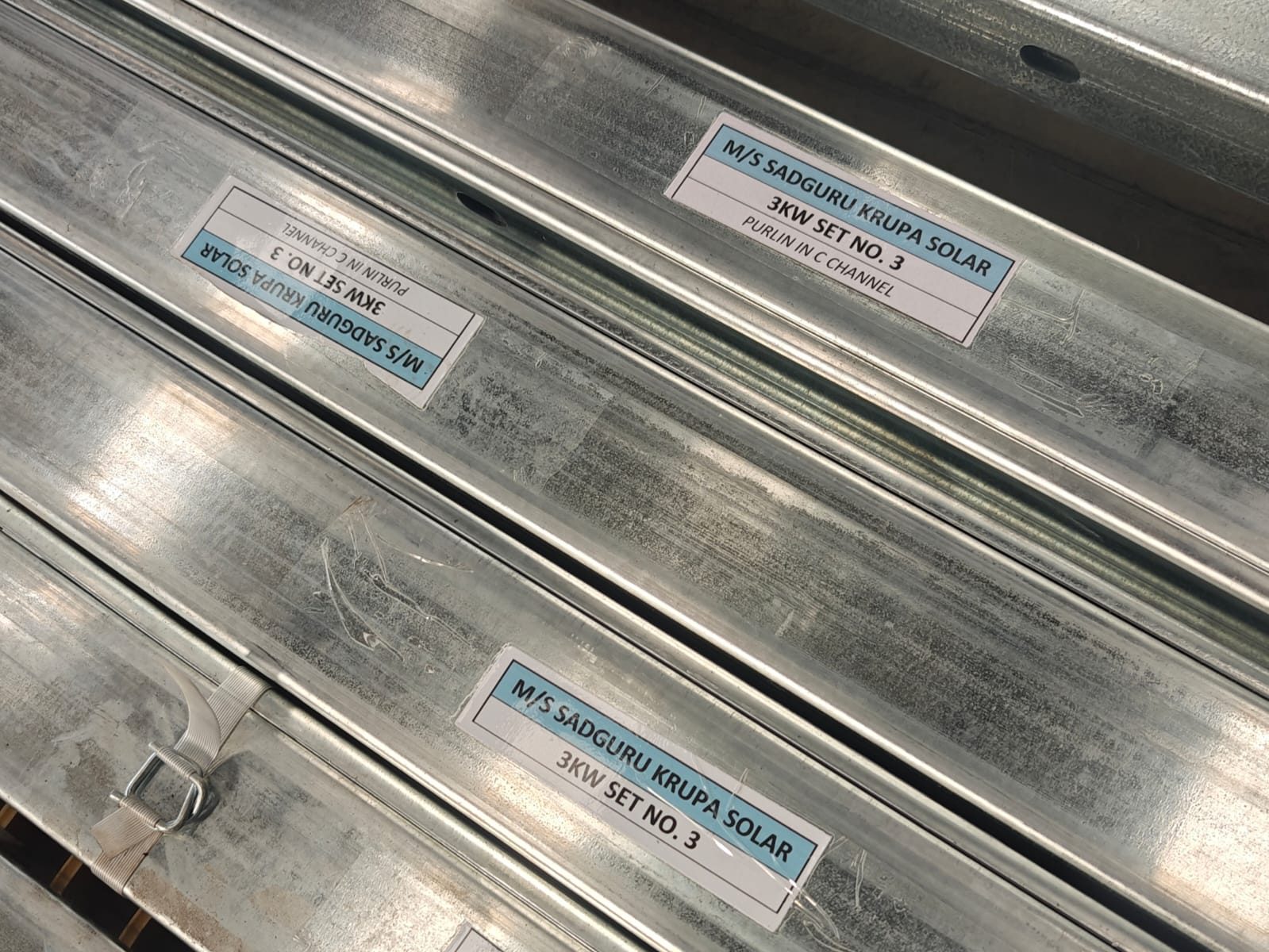

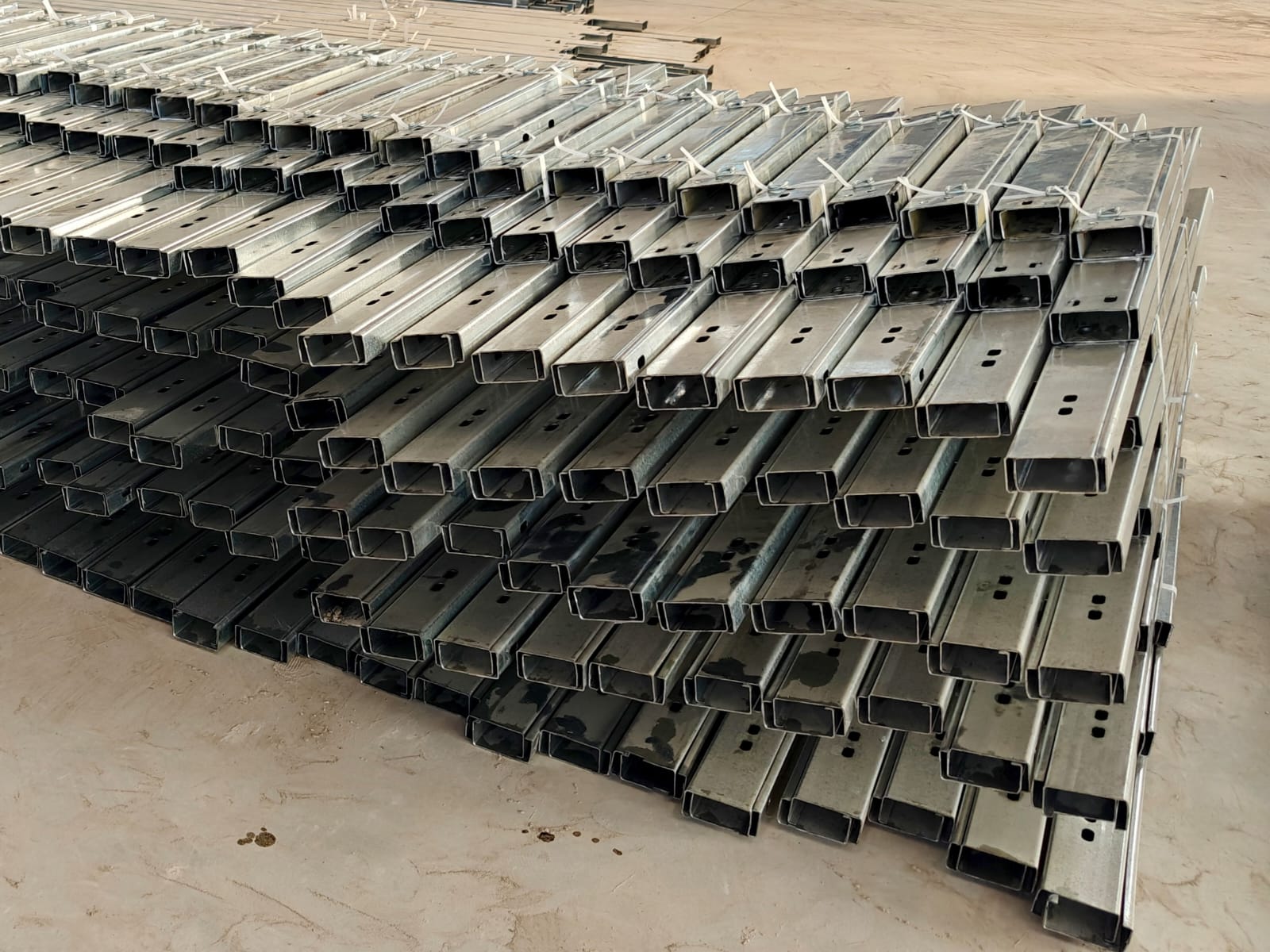

Project-Wise Packing for Faster Site Execution
Components can be systematically bundled and identified according to project requirements, helping site teams reduce material segregation time and simplify installation planning.

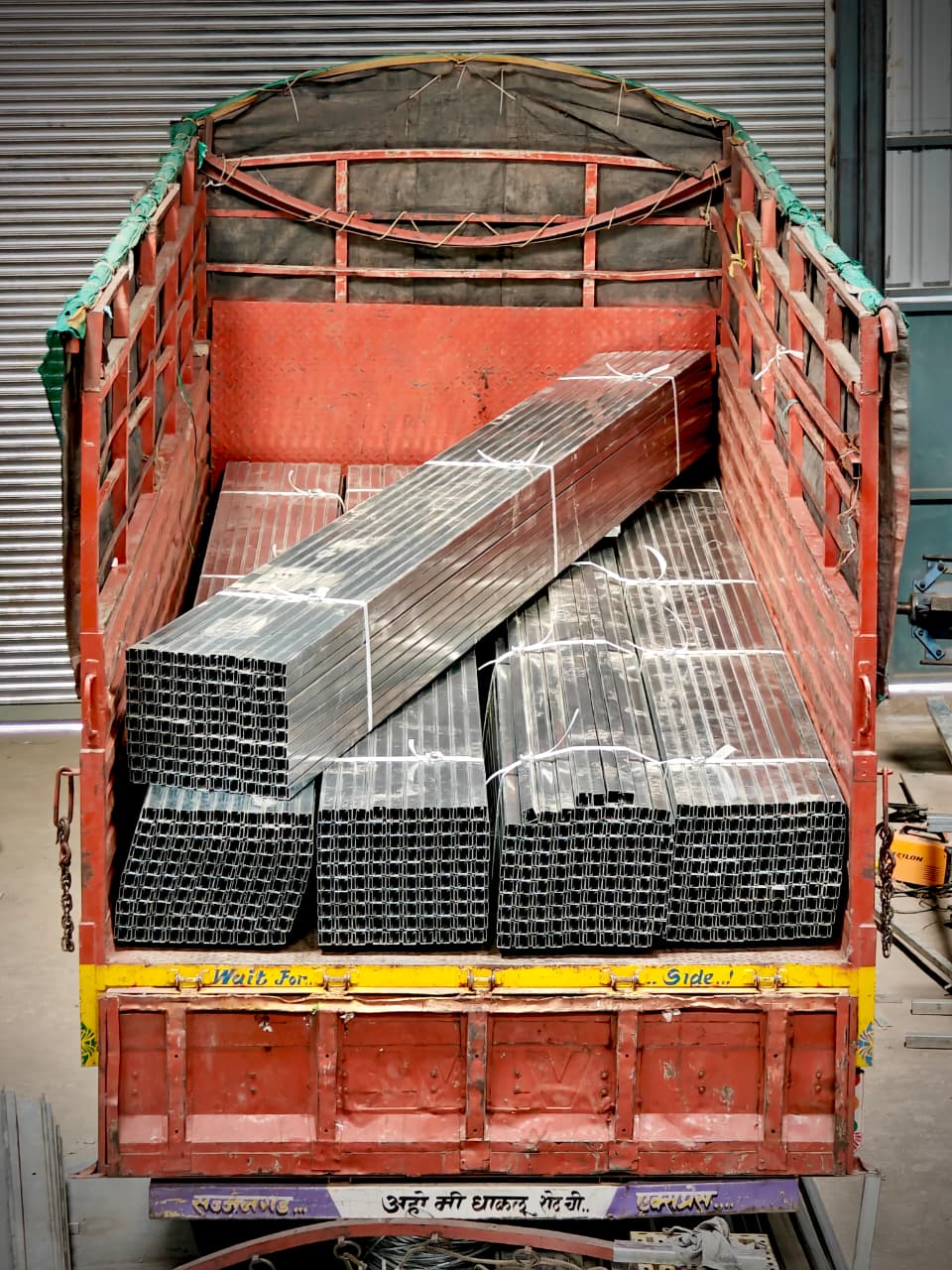

From Factory to Project Site
Optimized packing and dispatch planning to improve logistics efficiency.
